20 - 106 - 10

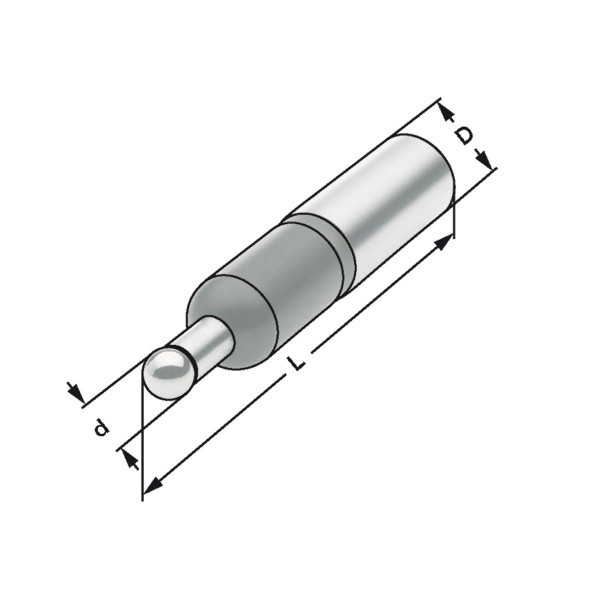

D = 20
L = 106
d = 10
Application:
Alignment of component reference surfaces or edges. Determination of bore centres to the machine spindle.
Version:
The spring-mounted spherical tip protects the unit from damage if contact is too violent. Functional parts hardened and ground. Concentricity: ± 0.01 mm.
Function:
When contact between the spherical tip and metal component occurs, batteries cause the lamp to light = identification of the reference point.
